CircuitMess Ringo DIY kit (CIRCUITMESS-RINGO-GSM)

£91.66

This neat little device is an open source cell phone that you can build yourself.

Besides that, Ringo is also an educational device shaped like a cell phone compatible with all mobile networks.

Its purpose: to motivate people to explore, learn and create something new in a fun and interesting way.


What's inside the box:

Ringo circuit board – the main board that connects all the components in a uniform device that can work as a cell phone

Ringo casing – multiple sheets of acrylic cut with the power of lasers. They protect the innards and give Ringo this sleek look

128*160 full color TFT LCD – for playing games, displaying phone numbers and everything in between

GSM module – a tiny module responsible for everything related to calling and texting other people

Main microcomputer module – a dual core processor with built-in Wi-Fi, BLE, and a charging circuit

Sound module – a board with a DAC (digital to analog converter) chip and a headphone jack for music playback (responsible for ringtones, alarms, game sound effects)

Amplifier module – makes loud buzzes, bleeps and bloops

Stick-on antenna – for superb phone signal (a.k.a. send text messages while in the bathroom)

4GB Micro SD card – preloaded with games and apps

A bag with other tiny electronic components

Who is this kit for?

lighter

Based on our experience, an 11-year-old kid should be able to assemble a Ringo kit with a tiny bit of help from an adult. Estimated build time: 5 hours.

Building the Ringo kit is just the beginning.After that, you’ll spend numerous hours creating your own games and apps and experimenting with hardware.



lighter

What you’ll learn with Ringo

  • how to solder properly
  • what are the basic electronic components and what are their functions
  • what are microcontrollers and some basics of digital electronics
  • how to program a microcontroller in C++, Python and other
  • how a basic cell phone works

Ringo schematics

lighter

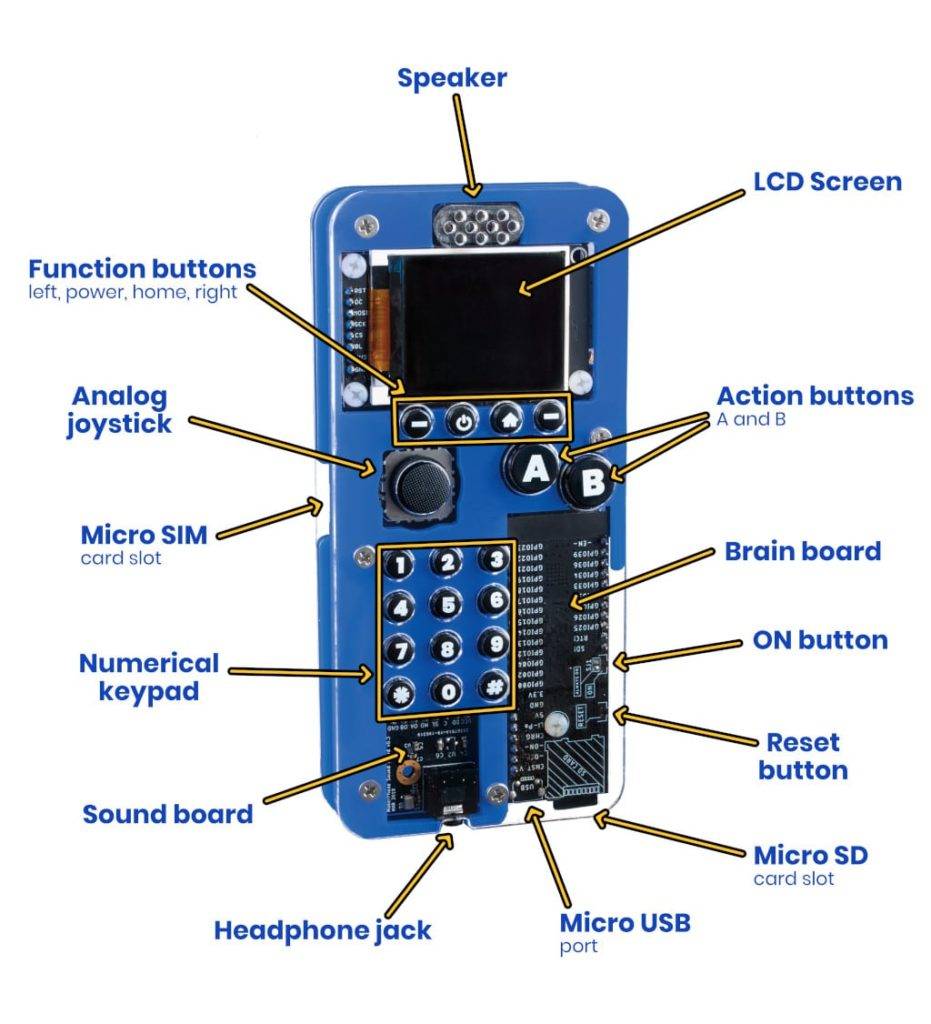

Check out the specs

Microcontroller

ESP32 with Xtensa dual-core 32-bit LX6 microprocessor, operating at 160MHz and performing at up to 600 DMIPS.4MB of built-in flash memory + 520kB of SRAM.

Display

1.8″, 160*128px full color (RGB 16bit).25FPS refresh rate by default, up to 50FPS.Digitally controllable backlight level.

Sound

10bit dedicated DAC (TFA9882).Multi-channel WAV playback.2W class-D audio amp, audio jack 3.5mm, 1W speaker, software volume control.

Input

4-way analog joystick, 12-button numeric keypad, A (confirm), B (back), 4 multi-purpose addressable buttons.

Micro SD card socket

FAT and FAT32 compatible.Every console comes with a 4GB Micro SD card with Ringo-compatible games and apps preloaded!

Network

Built in Wi-Fi 802.11 b/g/n and Bluetooth v4.2 BR/EDR and BLE.SIM800L or SIM7600 dedicated cellular network co-processor (the thing that calls other people).Micro SIM card slot.

Battery

LiPo 3.7V 1300mAh, charged through micro USB B port.Sufficient for approximately 3 days of normal use.

RTC (real time clock)

DS1307 Accurate I²C-Integrated RTC – this thing keeps time and takes care of alarms.

Extras

8 individually-controllable RGB LEDs mounted on the back of the phone – for signalisation and cosmetic purposes (IT GLOWS!)



lighter

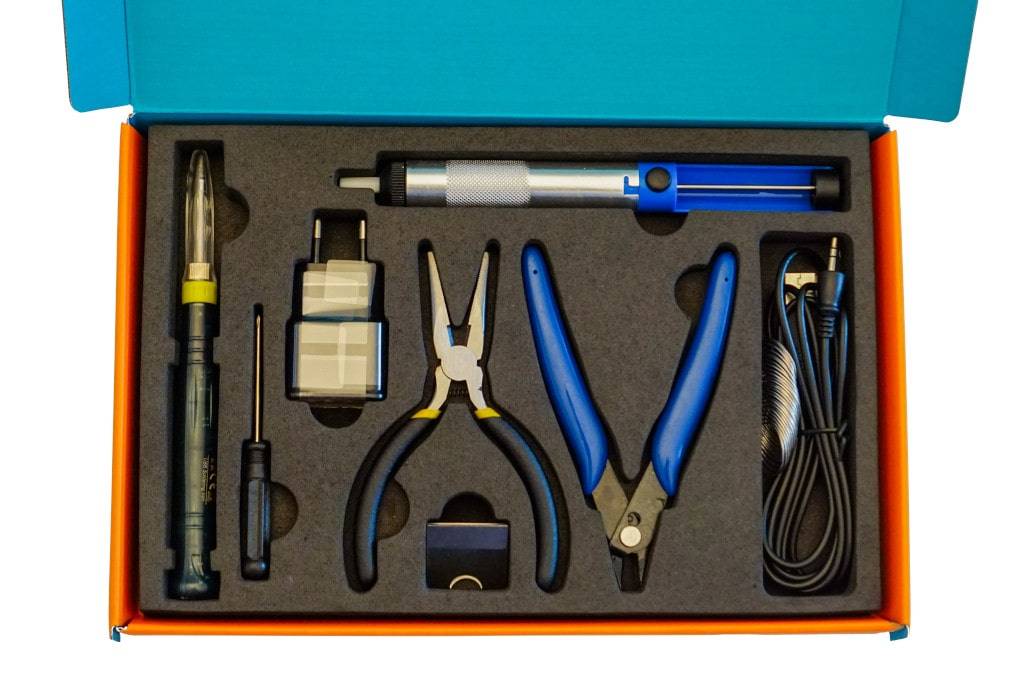

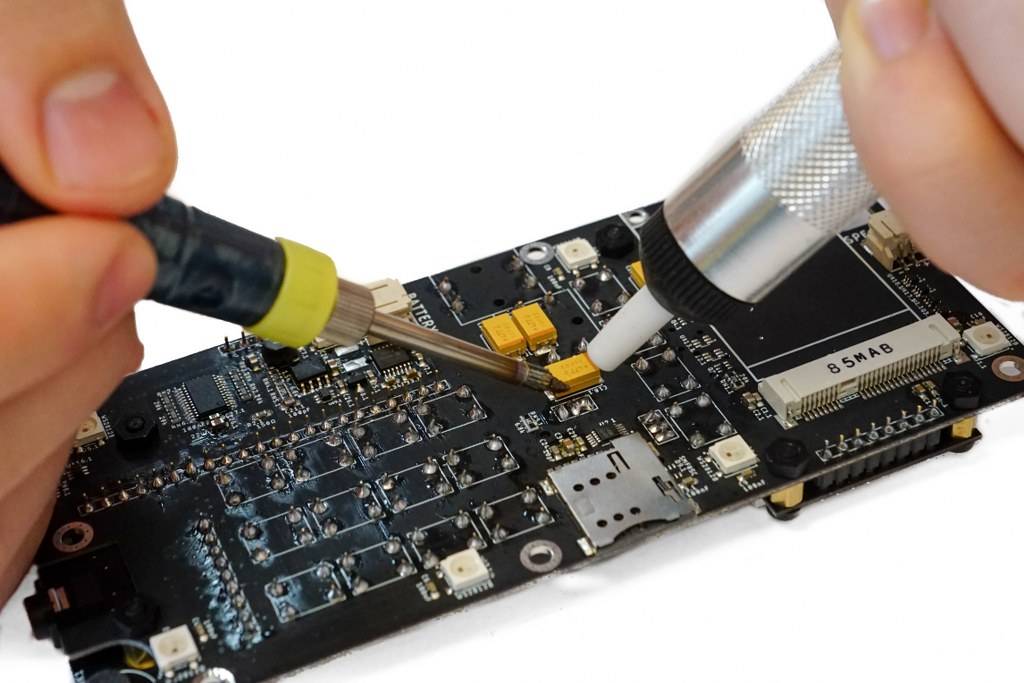

Ringo needs tools

You’ll need some basic tools and equipment for assembling your Ringo



  • regular soldering iron (nothing super expensive is required) and some solder
  • diagonal cutter pliers
  • regular screwdriver
  • some solder

Ringo is in color!

lighter lighter lighter lighter


Ringo has games!

lighter lighter




lighter

Ringo is hackable

Ringo is based on Arduino-compatible ESP32 microcontroller. Therefore, it’s compatible with lots of hardware expansion modules.

Ringo was meant to be hacked.

Ringo is fully customizable.


lighter

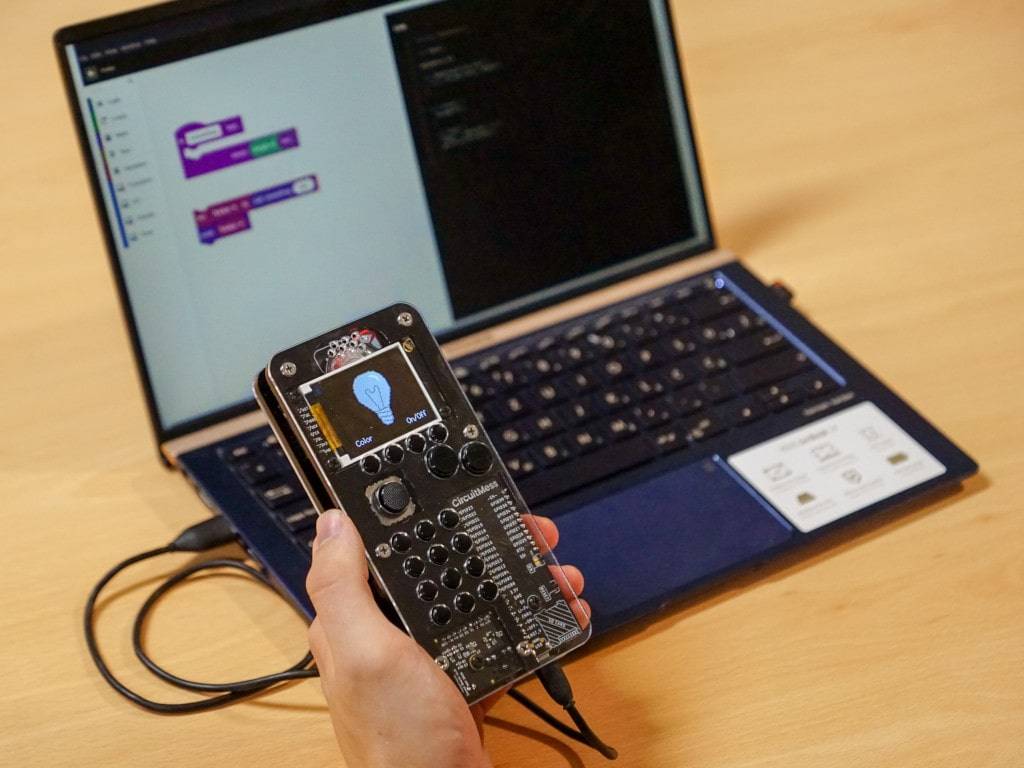

CircuitBlocks

A dedicated graphical code editor similar to Scratch or Code.org.

Getting started with coding was never easier!

Learn more



CircuitOS

CircuitOS is our custom-made operating system built on top of FreeRTOS. Currently it only works on our CircuitMess Ringo DIY mobile phone, but we plan to adapt it for all of our current and future products.

Learn more

Ringo has a build guide

CircuitMess Resources is a place for Ringo users to share their creations, exchange knowledge, and download programs made by others as well as a collection of tutorials, guides etc.

Check it out

Ringo ♥ Arduino

YES, we love Arduino.Ringo is based on Arduino-compatible ESP32 microcontroller.

Therefore, it can be programmed in Arduino IDE (based on C/C++) – the most popular programming environment for makers.
